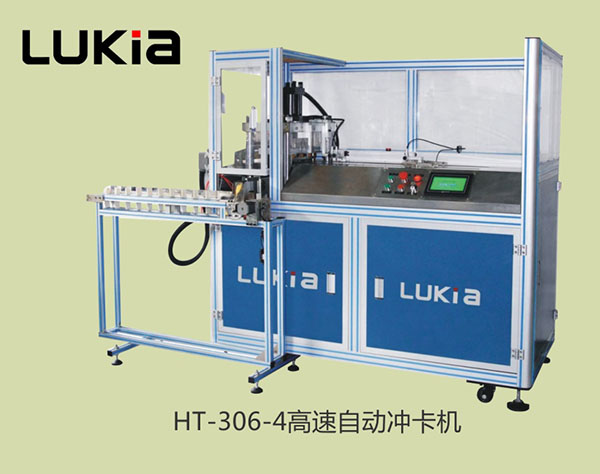

HT-306-4高速自動沖卡機采用PLC控制人機界面。送料系統采用日本歐姆龍伺服電機和日本高精度滾珠絲杠及直線導軌，移動平穩，移動距離準確。使定位精度小于0.10mm。采用專業高靈敏度光電識別裝置讀取定位標志，定位準確可靠。意大利進口液壓泵，靜音型,大流量。液壓油缸，沖切平穩，低噪聲。模具采用進口模具鋼制造。軟件功能強，8張卡可設置不同步距，物料變形或機械磨損仍能保證沖切精度。沖切速度高于同類產品30%。進料沖切方式有雙模、叁模、肆模、伍模可靈活選用。是卡廠設備必備。

HTCP-306-4-A3 (3x7/8) Card Punching Machine is controlled through imported PLC, it adopts

LC industry touch screen of WeinView MT6056i by Taiwan. The material feed system adopts the imported servo motor, high-precise ball screw and plane guide imported from Japan in order to ensure smooth moving and accurate moving distance. It uses the high sensitive sensor to read the position marks to ensure accurate and reliable location. The hydraulic pump from Taiwan is featuring low noise and large flow. The quality

hydraulic valves from Taiwan and the American seals have long service life. The punching mould driven by hydraulic cylinder can work smoothly and reliably with low noise.

The punch mould is made with imported Japanese mould steel. Its software function is strong; different cards can be set into different step distances. Punching precision can be ensured even in the situation of material distortion or mechanical abrasion.
