HTCP-306-2V-A4D(2x5)沖卡機產品特點

1、高靈敏度光電傳感器配合光標，由伺服電機驅動步進送料，自動裁切，精度高。

2、液壓式沖切動力，干凈節能，動力穩定。

3、沖出卡片自動送出，卡盒收集。

4、觸摸式人機界面操作，參數修改，簡單方便。

5、PLC程序控制自動運行，出錯報警停機。

6、沖卡機模具采用日本進口一級鋼材精工制成，不會因為使用次數和時間而變形，確保沖切出來的卡邊緣光滑，達到專業標準。是中型專業卡廠的首選。

7、采用專業高靈敏度光電識別裝置讀取定位標志，定位準確可靠。進口液壓泵，低噪聲、大流量。液壓油缸，沖切平穩，低噪聲。

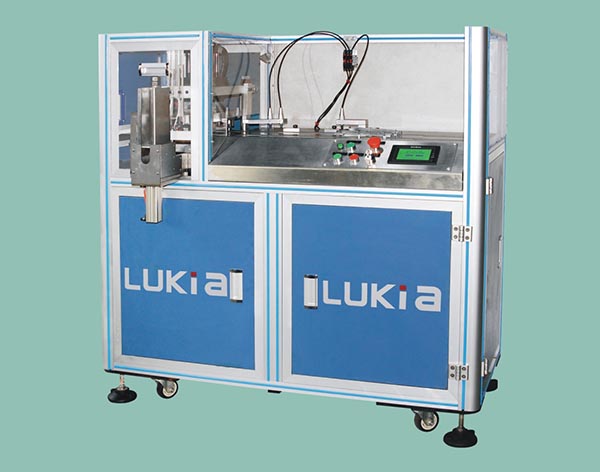

HTCP-306-2V-A4D(2x5) Card Punching Machine is controlled through imported PLC, it adopts LC industry touch screen of WeinView MT6056i by Taiwan. The material feed system adopts the imported stepper motor, high-precise ball screw and plane guide imported from Japan in order to ensure smooth moving and accurate moving distance. It uses the high sensitive sensor to read the position marks to ensure accurate and reliable location. The hydraulic pump from Taiwan is featuring low noise and large flow. The quality hydraulic valves from Taiwan and the American seals have long service life. The punching mould driven by hydraulic cylinder can work smoothly and reliably with low noise. The punch mould is made with imported Japanese mould steel. Its software function is strong; different cards can be set into different step distances. Punching precision can be ensured even in the situation of material distortion or mechanical abrasion.
